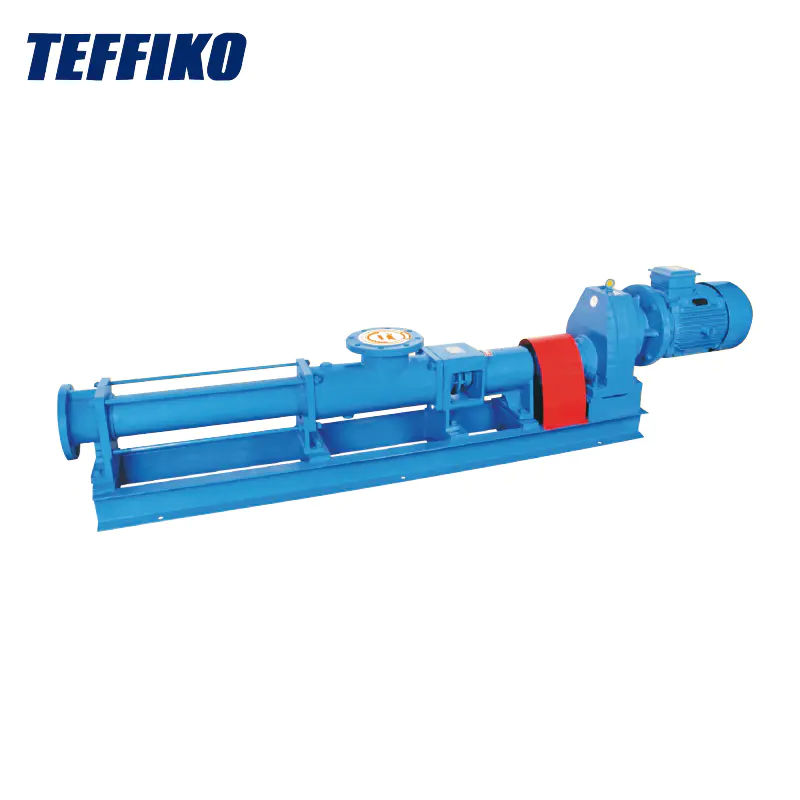

Et Teffike Generalis Type una stupra soleatus sunt idoneam ad haec operantes conditionibus:
● Transportation of High - Viscosity Media: De Viscosity De Media Ranges ex 20000 200,000 MPa · s, fretus in magnitudine pump.
● Transportation of Media continentur solidum particulas et fibris: maximum particula magnitudine est XVI mm longissimum fibra longitudo est C mm. Solidum - tempus contentus plerumque XL%, et cum solidum in media est in pulveris forma, potest pervenire LX% vel etiam altius.
● Continua et stabilis translationem: non est periodica pressura fluctuatio sicut quod reciprocating exhauriant.
● humilis - agitatione transportation: Non damnum inhaerens structuram in media.
● satisfaciunt humilis - strepitu requisitis.
Structuram Diagrams of Una - Screw Pump

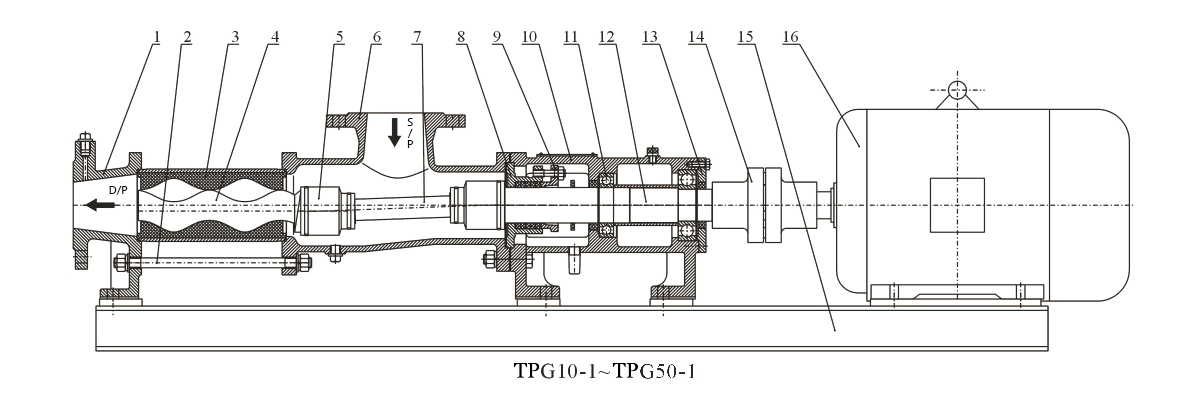

1.Discharge Corpus 2.Tie Rade 3.stator 4.screw Shaft 5.Universal iuncturam Conventus 6.Con 7.Connecting 8.Seal Sedem 9.Packing Glandy 10.Preing Cover 8.Seal 12.Drive Shaft13.Bearing 14.Coupling 16.Base

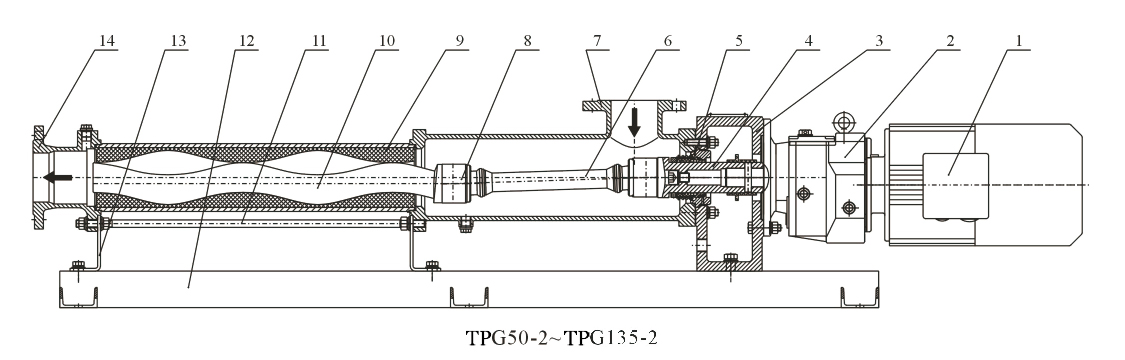

1.Motor 2.geErbox 3.Baring Component 4.Packing Sigillum Component 5.Extension Skf 6.Universal Component 7.Suction camera 8.Connecting Rod 9.Stator 10.Rotor 11.tie Rod 12.Support Pedes 14.Discharge Corpus

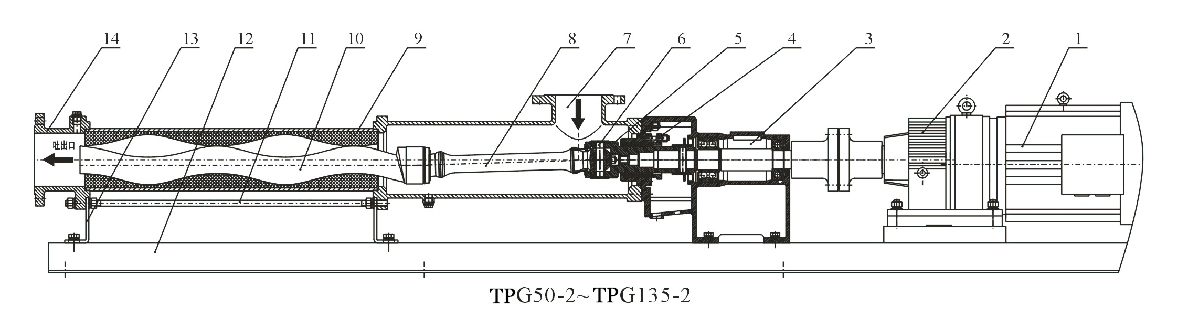

1.Motor 2.Gearbox 3.Direct, Connection Support 4.extion Shaft 5.Manical Sigillum Conventus 6.Connecting virga 7.Suction camera 8.Universal iuncturam conventus 9.Stator 10.Rotor 11.tie Rod 12.Support Pedes 14.Discharge Corpus
Applicationem agri
● Environmental Tutela ager: idoneus ad transportandum Industrial et domesticis purgamentum, tum caeno - Laden Turbid aqua continet solidum particulas et brevi fibris.
● Shipbuilding Industry: Used in navem de Purgato et transportandum media ut oleum - aqua mixturae, oleum caeno et oleum purgamentorum.
● PETROLEUM Industry: Olim onerarias rudis oleum, oleum - aqua mixti, et coalbed methane - aqua mixturis.
● pharmaceutical et cotidie eget industria: potest deferat variis viscosis slurries, emulsa, et unguentum - type Cosmetics.
● Canning industria, potest onerariis viscosis starches, mandi possunt olea, mel, jams et crepito.
● Camping Industry: idoneam ad transportandam fermentatum viscosis slurries, densissima distiller est grana, residua de cibis products, et mucosae cum variis solidum massas.
● Construction Industry: propter RESPERSIO et transportandae pasty substantiae ut caementa cæmento, cinerem cæmento et coatings.
● Mining Industry: Hortus Groundwater et Slurry - Laden Sewage continentur solidum particulas in mines ad terram.
● eget industria: Helica sentinam migrati diversa suspensiones, olea, colloidal slurries et adhesives.
● Printing et charta - faciens industria: potest deferat princeps - Viscosity Inks et PVC Pastes enim Wallpaper.
● Industrial Boilers et Power Plantae: et spiralem sentinam est usus ad transportandum calculus - aqua slurry.
Euismod parameter tables
| Non | Pump Model | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | nlet diametro mm | Outlet Gentiler mm | Munus |
| 1 | TPG10-1-V | 0.1 | 0.6 | 960 | 0.55 | 25 | 25 | PAM |
| 2 | Tpg13-1-V | 0.4 | 0.6 | 960 | 0.55 | 25 | 25 | PAM |
| 3 | TPG15-1-V | 0.6 | 0.6 | 960 | 0.75 | 25 | 25 | PAM |
| 4 | Tpg20-1-v | 0.8 | 0.6 | 960 | 0.75 | 25 | 25 | PAM |
| 5 | Tpg25-1-v | 2 | 0.6 | 960 | 1.5 | 32 | 25 | Onerariis caeno |
| 6 | Tpg30-1-V | 5 | 0.6 | 960 | 2.2 | 50 | 40 | Onerariis caeno |
| 7 | Tpg35-1-V | 8 | 0.6 | 960 | 3 | 65 | 50 | Onerariis caeno |
| 8 | Tpg40-1-V | 12 | 0.6 | 960 | 4 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-1-V | 20 | 0.6 | 960 | 5.5 | 100 | 80 | Onerariis caeno |
| 10 | Tpg60-1-v | 30 | 0.6 | 960 | 11 | 125 | 100 | Onerariis caeno |
Electio autem TPG-type pump in VIII-polus motor (humilis-voltage primo -stage Sludge iniustae pump)
| Non | Pump Model | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | Inhinc | Outlet Gentiler mm | Munus |
| 1 | TPG10-1-V | 0.08 | 0.6 | 720 | 0.55 | 25 | 25 | PAM |
| 2 | Tpg13-1-V | 0.3 | 0.6 | 720 | 0.55 | 25 | 25 | PAM |
| 3 | TPG15-1-V | 0.45 | 0.6 | 720 | 0.55 | 25 | 25 | PAM |
| 4 | Tpg20-1-v | 0.6 | 0.6 | 720 | 0.55 | 25 | 25 | PAM |
| 5 | Tpg25-1-v | 1.5 | 0.6 | 720 | 1.1 | 32 | 25 | Onerariis caeno |
| 6 | Tpg30-1-V | 4 | 0.6 | 720 | 2.2 | 50 | 40 | Onerariis caeno |
| 7 | Tpg35-1-V | 6 | 0.6 | 720 | 2.2 | 65 | 50 | Onerariis caeno |
| 8 | Tpg40-1-V | 9 | 0.6 | 720 | 3 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-1-V | 15 | 0.6 | 720 | 4 | 100 | 80 | Onerariis caeno |
| 10 | Tpg60-1-v | 25 | 0.6 | 720 | 7.5 | 125 | 100 | Onerariis caeno |
| 11 | Tpg70-1-V | 40 | 0.6 | 720 | 11 | 150 | 125 | Onerariis caeno |
| 12 | Tpg85-1-V | 50 | 0.6 | 720 | 15 | 150 | 150 | Onerariis caeno |
| Non | Pump modus | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | nlet diametro mm | Outlet Gentiler mm | Munus |
| 1 | TPG10-2-V | 0.1 | 1.2 | 960 | 0.55 | 25 | 25 | PAM |
| 2 | TPG13-2-V | 0.4 | 1.2 | 960 | 1.1 | 25 | 25 | PAM |
| 3 | TPG15-2-V | 0.6 | 1.2 | 960 | 1.1 | 25 | 25 | PAM |
| 4 | Tpg20-2-v | 0.8 | 1.2 | 960 | 1.5 | 25 | 25 | PAM |
| 5 | TPG25-2 V | 2 | 1.2 | 960 | 2.2 | 32 | 25 | Onerariis caeno |
| 6 | TPG30-2-V | 5 | 1.2 | 960 | 3 | 50 | 40 | Onerariis caeno |
| 7 | Tpg35-2-V | 8 | 1.2 | 960 | 4 | 65 | 50 | Onerariis caeno |
| 8 | TPG40-2 V | 12 | 1.2 | 960 | 5.5 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-2-V | 20 | 1.2 | 960 | 7.5 | 100 | 80 | Onerariis caeno |
| 10 | TPG60-2 V | 30 | 1.2 | 960 | 15 | 125 | 100 | Onerariis caeno |
Electio autem TPG-type pump in VIII-polus motricium (humilis-voltage secundo -stage Sludge Instolet Pump)
| Non. | Pump Model | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | Inhinc | Outlet Gentiler mm | Munus |
| 1 | TPG10-2-V | 0.08 | 1.2 | 720 | 0.55 | 25 | 25 | PAM |
| 2 | TPG13-2-V | 0.3 | 1.2 | 720 | 0.75 | 25 | 25 | PAM |
| 3 | TPG15-2-V | 0.45 | 1.2 | 720 | 1.1 | 25 | 25 | PAM |
| 4 | Tpg20-2-v | 0.6 | 1.2 | 720 | 1.1 | 25 | 25 | PAM |
| 5 | TPG25-2 V | 1.5 | 1.2 | 720 | 1.5 | 32 | 25 | Onerariis caeno |
| 6 | TPG30-2-V | 4 | 1.2 | 720 | 2.2 | 50 | 40 | Onerariis caeno |
| 7 | Tpg35-2-V | 6 | 1.2 | 720 | 3 | 65 | 50 | Onerariis caeno |
| 8 | TPG40-2 V | 9 | 1.2 | 720 | 4 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-2-V | 15 | 1.2 | 720 | 7.5 | 100 | 80 | Onerariis caeno |
| 10 | TPG60-2 V | 25 | 1.2 | 720 | 11 | 125 | 100 | Onerariis caeno |
| 11 | TPG70-2 V | 40 | 1.2 | 720 | 18.5 | 150 | 125 | Onerariis caeno |
| Non. | Pump Model | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | Inhinc | Outlet Gentiler mm | Munus |
| 1 | TPG10-2-V | 0.1 | 1.2 | 960 | 0.55 | 25 | 25 | PAM |
| 2 | TPG13-2-V | 0.4 | 1.2 | 960 | 1.1 | 25 | 25 | PAM |
| 3 | TPG15-2-V | 0.6 | 1.2 | 960 | 1.1 | 25 | 25 | PAM |
| 4 | Tpg20-2-v | 0.8 | 1.2 | 960 | 1.5 | 25 | 25 | PAM |
| 5 | TPG25-2 V | 2 | 1.2 | 960 | 2.2 | 32 | 25 | Onerariis caeno |
| 6 | TPG30-2-V | 5 | 1.2 | 960 | 3 | 50 | 40 | Onerariis sudge |
| 7 | Tpg35-2-V | 8 | 1.2 | 960 | 4 | 65 | 50 | Onerariis caeno |
| 8 | TPG40-2 V | 12 | 1.2 | 960 | 5.5 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-2-V | 20 | 1.2 | 960 | 7.5 | 100 | 80 | Onerariis caeno |
| 10 | TPG60-2 V | 30 | 1.2 | 960 | 15 | 125 | 100 | Onerariis caeno |
Electio autem TPG-type sentinam cum VIII polus motor (High -Voltage Second-scaena Sludge Instolet Pump)
| Non | Pump Model | Fluunt MW / h | Pressura MPA | Rated Volo RPM | Motricium Power CW | Inhinc | Outlet Gentiler mm | Munus |
| 1 | TPG10-2-V | 0.08 | 1.2 | 720 | 0.55 | 25 | 25 | PAM |
| 2 | TPG13-2-V | 0.3 | 1.2 | 720 | 0.75 | 25 | 25 | PAM |
| 3 | TPG15-2-V | 0.45 | 1.2 | 720 | 1.1 | 25 | 25 | PAM |
| 4 | Tpg20-2-v | 0.6 | 1.2 | 720 | 1.1 | 25 | 25 | Onerariis caeno |
| 5 | TPG25-2 V | 1.5 | 1.2 | 720 | 1.5 | 32 | 25 | Onerariis caeno |
| 6 | TPG30-2-V | 4 | 1.2 | 720 | 2.2 | 50 | 40 | Onerariis caeno |
| 7 | Tpg35-2-V | 6 | 1.2 | 720 | 3 | 65 | 50 | Onerariis caeno |
| 8 | TPG40-2 V | 9 | 1.2 | 720 | 4 | 80 | 65 | Onerariis caeno |
| 9 | TPG50-2-V | 15 | 1.2 | 720 | 7.5 | 100 | 80 | Onerariis caeno |
| 10 | TPG60-2 V | 25 | 1.2 | 720 | 11 | 125 | 100 | Onerariis caeno |
| 11 | TPG70-2 V | 40 | 1.2 | 720 | 18.5 | 150 | 125 | Onerariis caeno |
