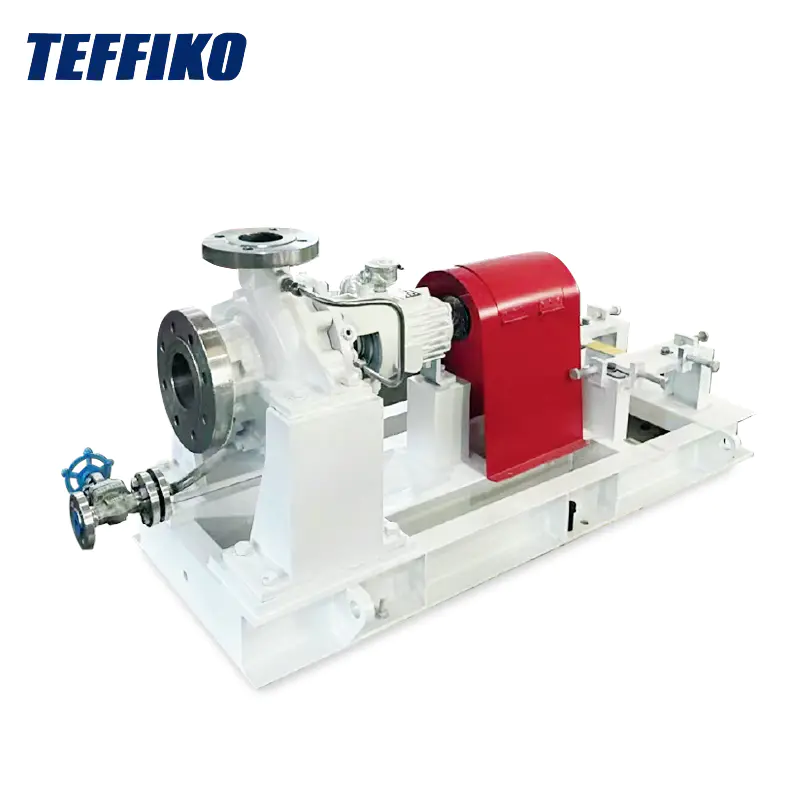

API Oh2 Odhung Type Horizontal Centrifugal sentinam est a novus seriem products disposito et developed per Teffiko. Hoc features horizontalis, una - scaena, una - suctu et radiales partialis volutpat structuram. Potest lacus variis liquoribus cum alta vel humilis temperaturis, neutrum aut mordax proprietatibus, ut inorganicis et organicum acida sicut nitric acidum, sulphoric acidum, hydrochloric acidum, et phosphoric acidum. Est maxime usus in conflans industria, petrochemical industria, calculus dispensando industria, charta et pulpam industria, sugar industria, calefacit et aquam copia industria, etc.
T2EP tabula centrifuga sentinam
Applicationem agri
● Petrochemical Industry
● Refineries, in processibus quasi rudis oleum distillation, catalytic fregisset, et hydro - conflavit, eget processus exhauritur, utilitas ad transferam rudis oleum, medium products, excoluerunt oleum et variis eget agentium.
● Petrochemical Industry: Per productionem basic eget rudis materiae ut ethylene et propylene, tum in polymer productio et synthesim de fine - eget variis reactionem rudis materiae, intermedia, et products. Exempli gratia, ut onerariis organicum compositorum ut benzene, toluene et Xylene.
● Coi Processing Industry: In processibus comprehendo calculus - ad - liquid, calculus - ad - Gas, et calculus - ad - Methanol, haec pumps potest onerariis instrumentis, ut carbones slurry, Syngas et methanolum.
● Power Industry
● Power Plantae: Pumps sunt solebant onerariam Boiler facere - Aquae, Condensate aquam et grassentur refrigerationem aquam. Et potest etiam esse ad deferat acidum - basi solutions et slurries in desulfurization et denatationes processibus.
● charta et pulpam industria
● Rudis Material Tortionance: Pumps sunt ad transferendum est pulpam, quae est mixtisque de Papermaking rudis materiae sicut lignum eu, bamboo in coctione et pulppam in stabulanda in pulvere, et pulentam et a stabulas in pulvere, aut pulentam in stabulas in pulvere, et in pulvere, et a raws et stabulas copia raw.
● Pulpam Pulpam Tortionance: Pumps sunt ad onerariis in qualified pulpam, quod abstulit per Polping et protegendo processus, ex pulpam cisternina ad headbox de chartam apparatus. Hinc firmum copia pulpam durante charta formationem uniformis pulpam quantitatem crassitudine.
Operating conditionibus
● rate fluunt: III - MMDC MW / h
● caput: IV - CCL M
● pressura, usque ad 5.0 MPA
● Temperature: -20 ° F - CDL °
● Gyrational Volo: MMCML RPM / min, MCDL RPM / min
Euismod Parametri Diagram
| exemplar | Mpeller | rated celeritas sentinam N = 2900r / min | Rated Volo ex sentinam N = 1450r / min | ||||||||||
| QM³ / h | H (m) | n% | Npshm | Y = 1.00 | QM³ / h | H (m) | n% | Npshm | Y = 1.00 | ||||
| Motricium Power et Model CW | Motor Power et Modus | ||||||||||||
| KW | |||||||||||||
| 25-200 | A | 11.5 | 49 | 42 | 1.5 | 5.5 | Y132s1-2 | 5.8 | 12 | 36 | 0.6 | 1.1 | Y9os-IV |
| B | 10.5 | 42 | 4 | Y112m-II | 5.4 | 11 | |||||||
| C | 9 | 36 | 3 | Y100l-II | 4.6 | 8.5 | |||||||
| D | 7.5 | 28 | 2.2 | Y90l-XII | 4 | 6.5 | |||||||
| E | 5.5 | 16 | 1.5 | Y90s-II | 3 | 4 | |||||||
| 25-250 | A | 10.5 | 80 | 28 | 1.2 | 11 | Y160m1-2 | 7.5 | 18 | 23 | 1 | 2.2 | Y100l1-4 |
| B | 9.7 | 68 | 7.5 | Y132s2-2 | 7 | 16 | 2.2 | Y100l1-4 | |||||
| C | 9 | 50 | 5.5 | Y132s1-2 | 6.5 | 11.5 | 2.2 | Y100l1-4 | |||||
| D | 8.5 | 30 | 4 | Y112m-II | 6 | 6.5 | 1.1 | Y90s, IV | |||||
| E | |||||||||||||
| 25-315 | A | 18.5 | 130 | 28 | 1.2 | 30 | Y200l1-2 | 9.5 | 32 | 25 | 0.7 | 5.5 | Y132s, IV |
| B | 17.5 | 115 | 30 | Y200l1-2 | 8.7 | 29 | 4.0 | Y112m-IV | |||||
| C | 16 | 100 | 22 | Y180m-II | 7.5 | 25 | 3.0 | Y100l2-4 | |||||
| D | 14 | 90 | 18.5 | Y160l1-2 | 7 | 22 | 3.0 | Y100l2-4 | |||||
| E | 13 | 80 | 18.5 | T160L1-2 | 6.8 | 20 | 3.0 | Y100l2-4 | |||||
| F | 11.5 | 67 | 15 | Y160m2-2 | 6 | 16 | 2.2 | Y100l1-4 | |||||
| 40-160 | A | 2b | 33 | 62 | 3 | 5.5 | Y132s1-2 | 14 | 8 | 59 | 0.8 | 1.1 | Y90s, IV |
| B | 25.6 | 29 | 4 | Y112m-II | 13 | 7 | |||||||
| C | 22 | 22 | 2.2 | Y90l-II | 11 | 5.5 | |||||||
| D | 20 | 16 | 9.5 | 4.5 | |||||||||
| 40-200 | A | 29 | 53 | 58 | 2.2 | 11 | Y160m1-2 | 14.5 | 13 | 55 | 0.8 | 1.5 | Y90l-II |
| B | 26 | 47 | 7.5 | Y132922 | 13 | 11.5 | 1.1 | Y90s, IV | |||||
| C | 22 | 39 | 5.5 | Y132s1-2 | 11.5 | 9 | |||||||
| D | 18 | 20 | 4 | Y112h-II | 9.5 | 7 | 1.1 | Y90s, IV | |||||
| 40-250 | A | 32 | 78 | 53 | 2.5 | 18.5 | Y160l-II | 16 | 19.5 | 49.5 | 0.8 | 3 | Y100l24 |
| B | 30 | 72 | 15 | Y160m2-2 | 15 | 18 | 2.2 | Y100l1-4 | |||||
| C | 24 | 60 | 11 | Y160M12 | 12.5 | 14 | 1.5 | Y90l.4 | |||||
| D | 21 | 47 | 7.5 | Y132s2-2 | 10.5 | 1 | 1.1 | Y908-4 | |||||
| 40-315 | A | 42 | 115 | 46 | 1.3 | 37 | Y200l2-2 | 21 | 29 | 42 | 0.5 | 5.5 | Y132s IV |
| B | 40 | 107 | 30 | Y200l1-2 | 20 | 26.5 | |||||||
| C | 34 | 81 | 22 | Y180m-II | 17.5 | 20 | 4 | Y112m-IV | |||||
| D | 25 | 61 | 15 | Y160nm2-2 | 15 | 15 | 3 | Y100l2-4 | |||||
| 50-160 | A | 50 | 34 | 71 | 2.1 | 11 | T160M1-2 | 25 | 8.4 | 69 | 0.B | 1.5 | Y90l-IV |
| B | 45 | 29 | 7.5 | Y132s2-2 | 22.5 | 7 | |||||||
| C | 38 | 22 | 5.5 | Y132s1-2 | 19 | 5.5 | 1.1 | Y90s, IV | |||||
| D | 31 | 17 | 3 | Y100l-II | 16.5 | 4 | |||||||
| 50-200 | A | 62 | 52 | 68 | 2.6 | 18.5 | Y160l-II | 31 | 13 | 65.5 | 0.7 | 3 | Y100l2-4 |
| B | 56 | 46 | 15 | Y160n2-2 | 28.5 | 11.5 | 2.2 | Y100l1-4 | |||||
| C | 49 | 37 | 11 | Y160n1-2 | 25 | 1.5 | Y90l-IV | ||||||
| D | 43 | 28 | 7.5 | Y13292-2 | 22 | 7 | 1.1 | Y903-4 | |||||
| 50-250 | A | 70 | 82 | 65 | 2.4 | 30 | Y200l1-2 | 35 | 20 | 62.5 | 0.7 | 4 | Y112m-IV |
| B | 33 | 18.5 | |||||||||||
| C | 60 | 60 | 22 | T180M-II | 30 | 15 | 3 | Y100l2-4 | |||||
| D | 50 | 45 | 15 | Y160m2-2 | 26 | 11 | 2.2 | Y100l1-4 | |||||
| 50-315 | A | 87 | 115 | 56 | 2.1 | 55 | T250h-II | 44 | 28 | 53 | 0.5 | 11 | Y160m-IV |
| B | 80 | 100 | 45 | Y223m-II | 40 | 24 | 7.5 | Y132m-IV | |||||
| C | 70 | 78 | 30 | Y2001.12 | 35 | 19 | 5.5 | Y132s IV | |||||
| D | 57 | 57 | 22 | Y180h II | 30 | 14 | 3 | Y100l24 | |||||
| 50-400 | A | 82 | 194 | 48 | 2 | 110 | 7315s-II | 41 | 48 | 45 | 0.5 | 15 | Y160l, IV |
| B | 7b | 175 | 90 | T28OH II | 39 | 43 | |||||||
| C | 70 | 140 | 75 | Y280s-II | 35 | 34 | 11 | Y160m-IV | |||||
| D | 60 | 102 | 45 | Y223m-II | 30 | 25 | 7.5 | Y132m-IV | |||||
